Compact
and Flexible
Giving Your Business Room to Grow |
|
|
|
 |
- One as an operator
display and the other as a customer display.
- One as a journal
display and the other as an opreator display.
- Use two displays
alternatively for two operators.
- Norinate the left
or right display per operator.
|
|
The
CASIO QT-2000 is designed and engineered for easy installation and configuration
to suit hospitality environments from large to small.A small footprint and
low-profile design combines with a bright LCD display that shows up to 16
lines of 40 characters each. The QT-2000 also comes with a spill-proof 168-key
flat keyboard to allow worry-free operation in food service and bar applications.

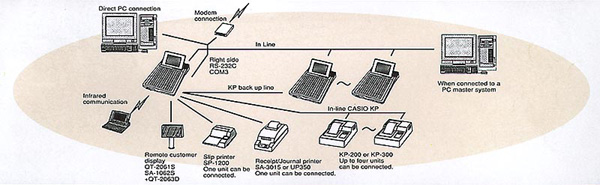

Optional equipment includes kitchen printers (up to four CASIO KP-200 or
KP-300 kitchen printers can be connected in line with a maximum cable length
of 1 kilomater), an RS-232C interface, receipt/journal printers (UP350,
SA3015), rear or remote customer displays, a slip printer (SP-1200), and
more. |
Menu Sheet Holder |
Rear customer display |
Magnetic Card Reader & Clerk Key |
|
| A
host of features and functions designed for the ultimate in hospitality
registration efficiency. |
Easy system installation
|
| The
initialization operation is followed by easy-to-understand guidance messages
that easy-to-understand guidance messages that take you step-by-step through
terminal set up. |
|
Quick and simple programming |
| Major
parameters are programming by providing Yes-or-No responses to system prompts
of inputting command codes. |
|
Comprehensive clerk
control |
| All
registration keys, mode control, X/Z report control and menu sheet access
can be allowed or prohibited for each individual clerk. |
|
Secure back-up system |
| The
QT-2000 system is structured as a master/back-up master system. A system
can be configured for a single or multiple back-up masters to suit the required
level of system security. |
|
Flat keyboard menu
sheet holder |
| The
sheet holder attached to the QT-2000 keyboard controls up to four different
menus (numbered 1 through 4). Instead of menu shift keys, menus are changed
by changing a setting position on the keyboard. An optional second menu
sheet holder can be added for control of four more menus numbered 5 through
8. |
|
Flash memory |
| Large
capacity Flash memory stored program files, data files, and new software
that can be downloaded on-line, in-line, or via an infrared port without
physically burning it into RPROM. |
|
Infrared interface
|
| X/Z
collection and auto program uploading and downloading can be performed using
a wireless infrared port. C-server communication software for the infrared
port is provided by CASIO. |
|
Remote operation |
| In-line
X/Z data collection and consolidation as well as auto programming can be
performed using a remote command sent from a personal computer through a
modern to the QT-2000. |
|
|
|
|
 |
| |
|
|
|
Model name
|
Description
|
Note
|
| Kitchen
Printer |
|
KP-200
KP-300
|
|
with
auto cutter |
| Slip
Printer |
|
| SP-1200 |
|
|
| Receipt/Journal
printer |
|
UP350
PS-170
SA-3087TM
SA-3015
|
Receipt
printer
AC adaptor for UP350
Printer cable
2.5 Station printer |
Cable
length: 3m |
| Display |
|
QT-2062D
QT-2060D
QT-2063D
QT-2061S
SA-1062S |
Second
LCD panel
Rear display set
Customer display set
Pole for QT-2063D
Expansion cable for QT-2063D |
Cable
length: 5m |
| Sheet
holder |
|
| SH-KIT1 |
Sheet
holder kit |
Two
holders (1st~4th, 5th~8th) with four plain menu sheets |
| |
| Multi-drawer |
|
| MDL-8 |
Multi
drawer kit |
Additional
one drawer |
| MCR |
|
| QT-2046MC |
Magnetic
card reader |
|
| Clerk
key |
|
CLK-17
CLK-18 |
Clerk
key set
Clerk key set |
For
6 clerks
For 15 clerks |
| RAM
chip |
|
RAM610-10LL
RAM530-10 |
4Mbit
RAM
1Mbit RAM |
(1piece
per terminal)
(1piece per terminal) |
| Dimension
and weight: 270mm(W) x 93mm(H) x 406mm(D)/4kg |
|
NOTES:
Specifications and design are subject to change without notice.
|
